(Discontinued) ROUSH 2015-2017 Mustang Supercharger - Phase 1 670 HP Calibrated - 421823

Save $418.00
RoushSKU: 421823
No reviews

Sale price$10,443.00 Regular price$10,861.00


Product highlights for the 2015-2017 ROUSH Mustang Supercharger - Phase 1 670 HP Calibrated:

  • Fits 2015-2017 Mustang GT 5.0L V8
  • Note: Not applicable to vehicles with adaptive cruise control
  • ROUSH/Ford Performance TVS R2300 Phase 1 Supercharger System
  • Produces 670 Horsepower/545 ft-lbs. torque
  • Compatible with both manual and automatic transmissions
  • Features Eaton’s new four-lobe rotors, along with newly-designed high-flowing inlet and outlet ports, that greatly enhances thermal efficiency over previous models enabling greater volumetric capacity at higher RPMs
  • Large intercooler, redesigned large low temperature radiator, and degas bottle provide substantial cooling technology
  • 85mm Supercharger Pulley
  • Fuel charging assembly with ROUSH-designed upper and lower aluminum intake manifolds
  • High-flow induction system with twin-60mm throttle body provides increased air flow
  • Heavy-duty, first sheave FEAD system
  • ROUSH/Ford Racing calibration included (to be downloaded using the ROUSH RDT software – see details below)

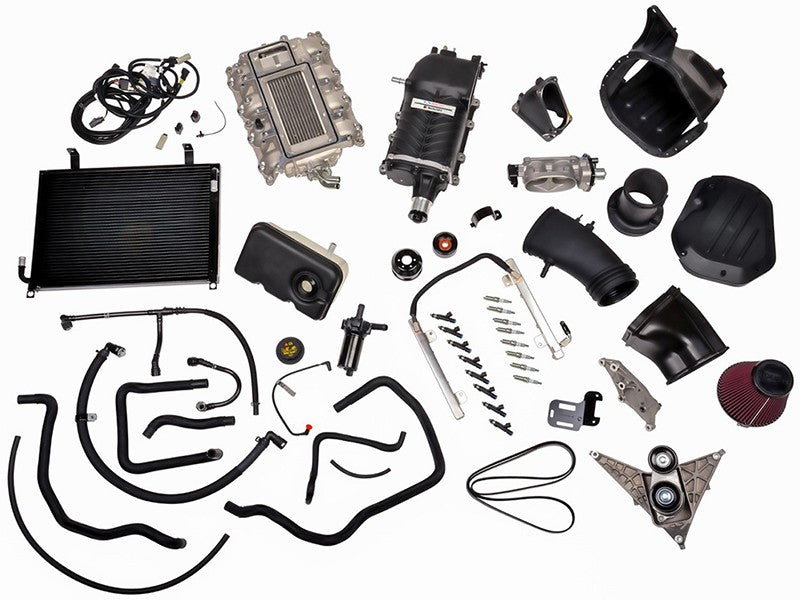

  • Includes all necessary installation hardware
  • 3-Year/36,000-Mile ROUSH-supplied parts only limited warranty
  • Optional 3-Year/36,000-Mile ROUSH Drivetrain Warranty available for purchase ($995.00 additional)
  • NOW 50 State legal emission on 2015-2017 / CARB E.O.#D-418-27

ROUSH and Ford Racing have teamed up to develop this industry-leading calibrated supercharger system. Boosting performance to a staggering 670 Horsepower/545 ft-lbs. of torque for the 2015-2017 Ford Mustang 5.0L V8, the ROUSH and Ford Racing 2.3L Phase 1 Calibrated Supercharger Kit is part of the TVS (Twin Vortices Series) line of superchargers developed by ROUSH, raising the bar for performance and reliability. Eaton’s TVS technology rotating assembly delivers more power and better fuel economy in a smaller package, and is part of the same line that has been used and proven for years in ROUSH-built Ford Mustangs.

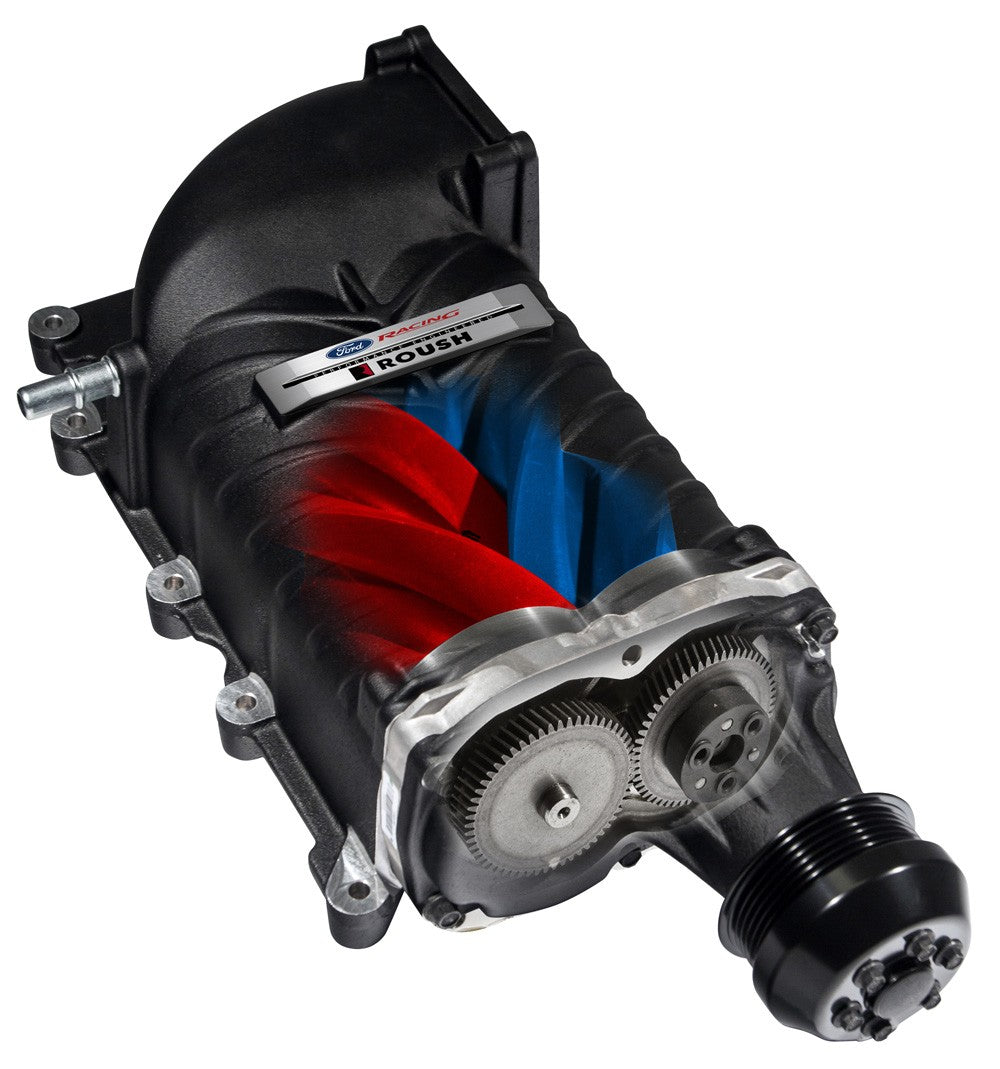

The ROUSH R2300 TVS supercharger is a roots-type positive displacement supercharger that features twin four-lobe rotors that are twisted 160-degrees. By comparison, the original Eaton supercharger rotating assembly featured three lobes twisted 60-degrees. The fourth lobe and the added twist, when combined with newly-redesigned air inlet and outlet ports, provides a long list of benefits including: greatly enhanced thermal efficiency, higher volumetric capacity, higher operating speeds, a smoother, more efficient flow of air into the engine, and improved noise and vibration characteristics.

Unlike turbocharging, the ROUSH R2300 TVS supercharger provides instant throttle response and can generate increased power through the engine’s entire power band.

*This part now utilizes the ROUSH Flash Voucher card to be calibrated using ROUSH Diagnostic Tool (RDT) software and pass-thru device. If you do not have access to an approved pass-thru device, you can send your PCM back to ROUSH to be flashed for an additional $100.00 fee.

RDT Software and PCM Calibration Instructions

NOTE: Not applicable to vehicles with adaptive cruise control


This kit comes with an extended parts warranty (ROUSH Supplied Parts Only), which is good for 3 years or 36,000 miles from the date of retail purchase. An optional 3-year/36,000-Mile Powertrain Warranty is available, which is good for 3 years or 36,000 miles from the original vehicle in service date from Ford.To order this warranty option, call 800.59.ROUSH. Read the optional warranty details here.
