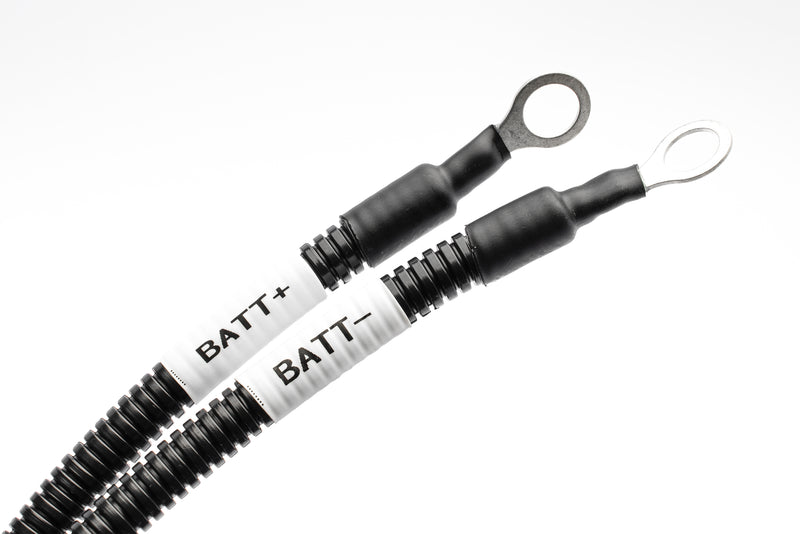

HEAVY DUTY GAUGE LIGHT BAR HARNESS
Already cut to length, just plug in a single light or light bar to your vehicle. This harness will run from one light/ Bar to the fire wall of any truck. The Standard Gauge Light Bar Harness is 10awg wire and can support up to 30 amps total in general on the circuit. (We have a SD Light bar harness as well with 14AWG that can hold up to 15 amps) If you are not putting this onto a fuse protected circuit capable of the amps up to 30 that you want to use, we recommend that you add the relay adapter.
This is a direct component harness to connect a single light to ANY Ford Raptor, or Ford Superduty, Bronco, ETC with built in switches. (if you are drawing more than 15 amps though, you WILL need the relay adapter!)
Any other vehicle (Or higher amp switch requirements), with the use of our add on relay/fuse adaptors*
(See detailed instructions for various applications and see below)
You can also add a splitter if you want to connect multiple lights UP TO the recommended amp draw.
Harness System Description-
This harness is part of our UNIVERSAL harness system. Each harness can be used for virtually ANY vehicle and ANY lighting application with the use of our many adapters and modules. Each adapter or module will simply plug into the harness to fit virtually ANY light.
For example, if you have any light such as Rigid Radiance, Scene, 360, or any other make and model WITHOUT connectors on the bare wires with the lights. You will simply add on the included matching connectors in the included kit.
If you have lights WITH connectors on them, you just add the correct connector adaptor type. Some examples of connector adapters are- Rigid Pro Series lights or Single stage lights use DT connectors. Baja Designs (For the most part) use WP Connectors. If you have a 3 wire light (With the Amber/Multicolor background) you can use the included plug pack to either add to your lights 90% of the time, or your light will most likely already have the 3 way WP connectors on them, which will match to these harnesses.
These harnesses also can be interconnected to other adapters from the system. Including Tail Light or Marker Light Trigger adapters to trigger reverse lights, marker lights to backlit lighting, etc.
See other optional components to BUILD YOUR LIGHTING SYSTEM!!
This Component is a stand alone harness that is all you will need in applications like the Ford F-150 Raptor, where you are connecting in to the vehicles BUILT IN RELAYS and FUSES. This harness is not FUSED and therefore, if you are connecting it direct to ANYTHING other than a fused circuit, you MUST connect our add on Relay/Fuse adaptor to protect your lights and vehicle from fire. We are NOT responsible for incorrectly installed equipment. If you have questions, please refer to the chart, instructions or reach out to us so we can guide you.
