2019-2022 Ford Ranger Lower Bumper Grille Light Bar Kit - S8 or OnX6

>
Baja DesignsSKU: 447611

2019-2022 Ford Ranger Lower Bumper Grille Light Bar Kit - S8 or OnX6

>
Baja DesignsSKU: 447611

Price:
Sale price$1,069.00
Dark Box

Most Items Ship in 1-2 Business Days

Check Mark

Authorized Dealers

Description

**Note: if your Ranger is equipped with a speed sensor in the middle of the lower grill opening, this kit won’t fit and may effect the onboard vehicle safety system.

Description S8 Version:

Looking for the ultimate bumper light bar for your Ranger? Look no further! The 20" S8 kit with backlighting is the kit for you, it includes everything you need, the light, wiring harness, and mounts. This kit is mounted in the lower grille, and mounting the light doesn't require any drilling or modifications to your vehicle. Note that vehicles equipped with the "Active Cruise Control" will NOT be able to run this kit without removing, or relocating the sensors.

Baja Designs Features:
Satisfactions Guarantee – 30 Day Money Back
Guarantee
Limited Lifetime Warranty – Complete Purchase Protection
uService® – Replaceable Lenses And Optics
ClearView® – All The Light, Right Where You Need It.
MoistureBlock™ – Waterproof, Rain Proof, Submersible
CopperDrive® – Only LED Driven At 100%
5000K Daylight – Less Driver Fatigue, Natural Color

Specifications:
Lumens: 12,656 Utilizing 16 Cree LEDs
Wattage/Amps:  112W / 8.12A
Dimensions: 20” x 3” x 1.6”
Weight: 4.5 lbs
LED Life Expectancy: 49,930 Hours
Front Lens:  Hard Coated Polycarbonate
Housing:  Aircraft Grade Aluminum w/Mil-Spec Hard Anodize
Bezel: Billet Machined Aluminum
Hardware & Bracket Material: Stainless Steel
Exceeds MIL-STD810G (Mil-Spec Testing)
Built-In Overvoltage Protection
IP69K (Waterproof up to 9ft & Pressure Washable)
IK10 Compliant (Mechanical Impact Testing)

(S8 Patent D780,964)

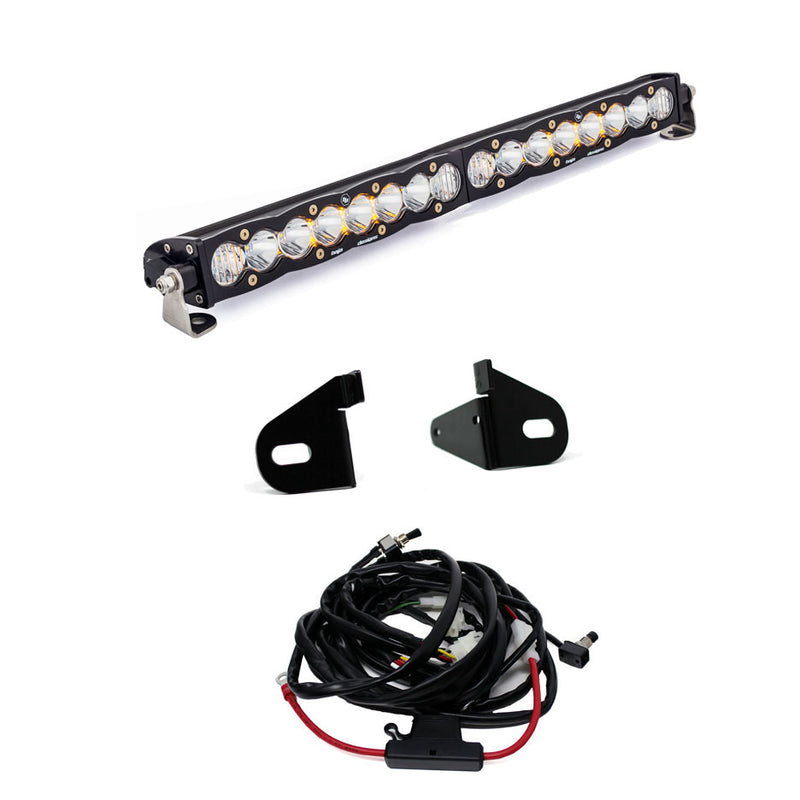

Kit Includes:

  • S8 20" Driving Combo
  • Wiring
  • Hardware
  • Brackets

Description OnX6 Version:

Looking for the ultimate lighting kit for your Ranger? Look no futher! The 20" OnX6+ kit is the kit for you, it includes everthing you need, the light, wiring harness, and mounts. his kit is mounted in the lower grille, and mounting the light doesn't require any drilling or modifications to your vehicle. Note that vehicles equipped with the "Active Cruise Control" will NOT be able to run this kit without removing, or relocating the sensors.






This bar is equipped with BMT – Battery Management Technology

-Elimination Of Flickering at Low Voltage

-Added Protection to Vehicle Wiring and Systems

-Protection from Dangerous Current Spikes

The OnX6+ LED Light Bar is BRIGHTER. BOLDER. BETTER.



Baja Designs Features:
Satisfactions Guarantee – 30 Day Money Back
Guarantee
Limited Lifetime Warranty – Complete Purchase Protection
uService® – Replaceable Lenses And Optics
ClearView® – All The Light, Right Where You Need It.
MoistureBlock™ – Waterproof, Rain Proof, Submersible
CopperDrive® – Only LED Driven At 100%
5000K Daylight – Less Driver Fatigue, Natural Color

Specifications:
Lumens: (High) 24,920 (Low) 18,460 Utilizing 12 Cree LEDs
Wattage/Amps: (High) 216W / 16.6A (Low) 160W / 12.0A
Dimensions: 20" x 4.29" x 2.69"
Weight: 7.85 lbs
LED Life Expectancy: 49,930 Hours
Front Lens: Hard Coated Polycarbonate
Housing: Aircraft Grade Aluminum w/Mil-Spec Hard Anodize
Bezel: Billet Machined Aluminum
Hardware & Bracket Material: Stainless Steel
Exceeds MIL-STD810G (Mil-Spec Testing)
Built-In Overvoltage Protection
IP69K (Waterproof up to 9ft & Pressure Washable)
IK10 Compliant (Mechanical Impact Testing)



Kit Includes:

  • OnX6+ 20" Driving Combo
  • Wiring
  • Hardware
  • Brackets
