Description
Here at SPV Parts, we like to give MORE Choice and MORE Simple solutions.
That's why we have created an UPGRADED combination from the popular Baja # 448061 & # 448062 kits.
Here is what we have updated for you-
- Our kit includes our PATENTED Harnesses from our harness system. (With more flexibility. (See below for details)
- Our kit allows you to select from different combinations of Squadron Lights. Including one or MORE Yellow pairs. (See details below)
With our patented harness system, your wiring options are virtually endless. It is also the most simple install you will ever find. This is because our system is plug n play.
Examples of this are: Depending on amperage, which switches you use or whether you get Sport or Pro. You can choose to add a relay by plugging it in. Or plug in direct to your switches without a relay.
Want a pair of Yellow with 2 pairs of Clear? You also want them on a separate switch right? Well, with our crossover adapters. You simply plug in the crossover adapters where you want those yellows on a different switch and you are good to go! No special wiring. Nothing extra to buy. Watch the video in the photo section.
Baja has 5 different beam patterns. Spot, Driving Combo, Wide Cornering, Racer Spot, and Scene. We didn't include Scene here, for the mere fact that with the lights behind the grille, a lot of the scattered pattern that pattern would produce would be blocked.

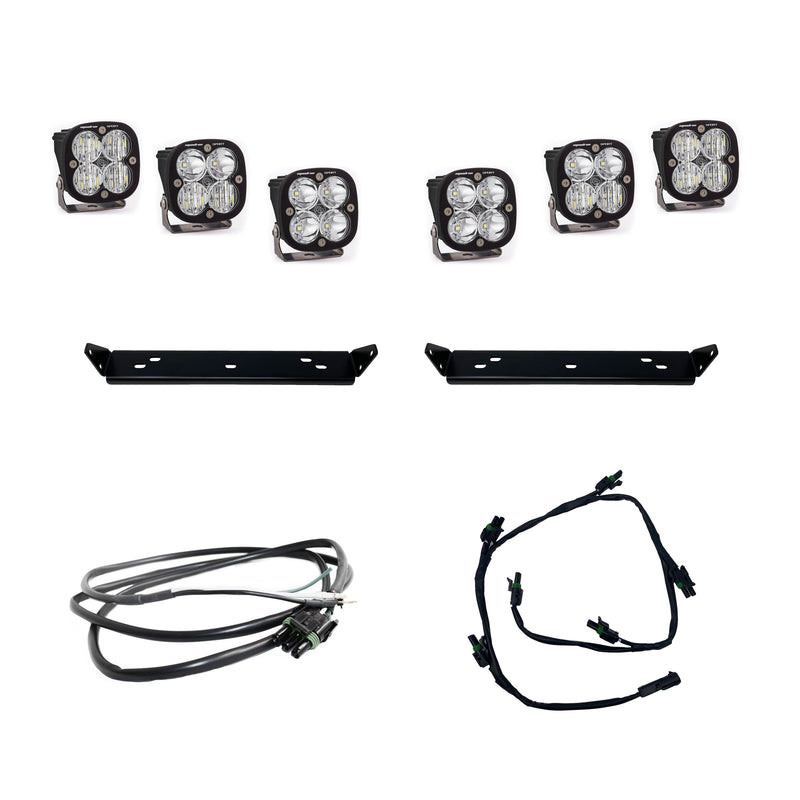

You will get-
- One Short Harness to switches
- One 6 Connector Harness Splitter
- One Relay Adapter
- 6 WP 2 way Adapters or WP 2 way Crossover Adapters depending on Light selections
- 3 Pairs of Lights
- Behind the Grille Mounts and Hardware
Description:
SPORT-
The Squadron Sport uses four Cree LEDs to produce 3,150 lumens at 26 watts, to produce crisp, clear light that power through the darkness and improve visibility in virtually any condition. Plus, the LED sport lights are energy-saving, so you can enjoy a brighter, longer-lasting light without draining your system.
PRO-
The Squadron Pro from Baja Designs is the go-to choice when you want to annihilate the night and blast away the darkness. The compact LED light boasts an impressive 4,600 lumens at 40 watts, which means that these lights provide brilliant brightness. The secret to Squadron Pro’s brilliance is Cree LEDs, which provide 20% more reach than standard LEDs with the same power consumption.
To give these kits and easier wiring installation, each kit includes an up-fitter harness that allows you to tap your lights into the factory up-fitter switches.
Patterns:
Driving/Combo: Maximum trail coverage in a single light. The Driving/Combo pattern is equipped with both Driving (42°) and spot (9°) optics to provide you with a smooth blend of light for both near field applications and distance (Lighting Zone 3)
Wide Cornering: BD was the first to develop a pattern specifically for cornering, dust and/or fog conditions. The Wide Driving pattern offers a 42° flattened horizontal beam for the ultimate in comfort lighting. (Lighting Zones 1 & 2)
Spot: A longer and narrower 9° beam focus for illumination further down the trail or road. The Spot pattern is designed to be used in conjunction with additional Wide Driving and/or Driving/Combo beam lights. (Lighting Zone 4 & 5)
Racer Edition Spot: These lights are designed for those that drive in the triple digits of speed off-road, or need to see thousands of feet down the road. Zone 5 lights produce an even tighter pattern than our traditional spots. Before adding lights in Zone 5, we recommend having a well-balanced lighting package in order to avoid separations of spotlights due to this much tighter pattern.
