Description
SPV Parts 2021+ Ford Raptor E-Series & SR PRO 40" Bumper Light Bar Kit
NOTE: 2024 Models. These fit the 2024 models with the 35 package. They don't fit the new Modular Bumper on the R model or 37 Package. We will have new mounts for those soon.
IN-STOCK & SHIPPING NOW!!!

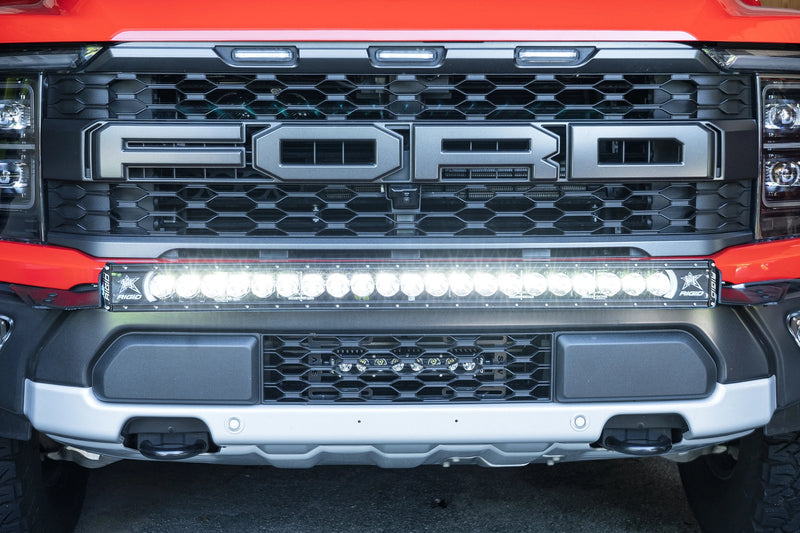

Alright, get excited! Now you can skip buying heavy aftermarket bumpers just to mount a Light Bar to your Raptor! The New Raptor Bumper Mounts allow you to mount a 40-inch Light Bar to your Raptor.
Big heavy bumpers are susceptible to rust, and the added 200-300lbs WILL change the handling of your truck. Think of driving on a winding road with a snowplow on the front of your truck... Problem solved with our premium no drill mount kits

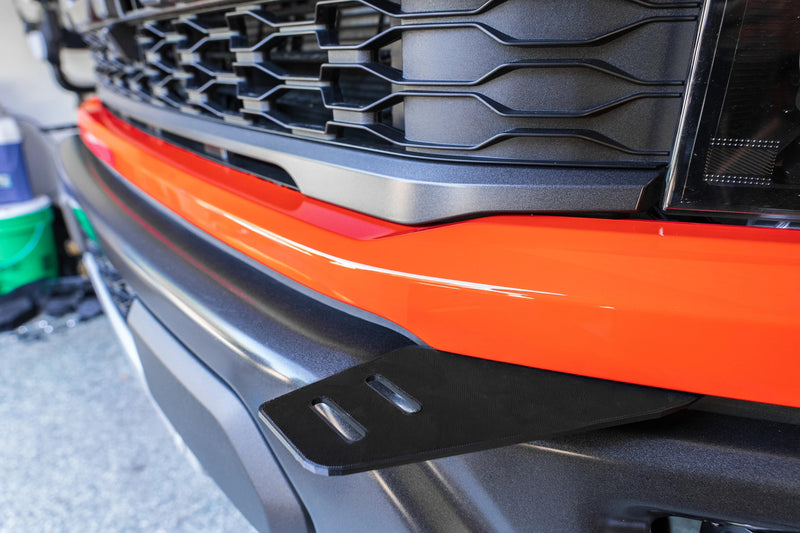

Our Main Bumper Mounts are a THICK 7 Gauge Stainless Steel. Almost 1/4 inch thick for heavy weight from those big bars! The Post Mounts for Light Bars are 11 Gauge Stainless Steel as well.
Kit includes:
- 2 Main no drill bumper mounts, 2 Light Bar top Mounts and Hardware.
- Choice of FULL-SIZE E-Series Pro or SR Pro Series 40" Light bar
- SPV Parts Patented Plug-and-Play HD Lightbar Harness with built-in Relay Adapter
Choosing the right light bar for YOU...
The main difference between the 2 light bars physically, is that the SR series is about 1/2 as tall. However, it also has 1/2 the LED's as is sister in the full-size E-Series.
As for wiring. Our Plug N Play Harness from our system is optional, but with the E-Series and SR Series in the Pro models are over the 15-amp max and REQUIRE a relay and higher amp fuse. So, to keep costs down for the end user, we are including a connector kit that can be installed on the end of the included Rigid Harness to add connectors to that and the switch wires. This way you can still unplug and move them around if you want.
Detailed Light Specifications-
Full Size E-Series Pro Light Bar
- Part # 140213
- Weight - 16
- Optics - Spot
- Watts - 306
- Amp Draw - 22
- Voltage Max - 36
- Raw Lumens - 31,080
- Lux @ 10M - 9,592
- Beam Distance @ 1Lux - 979
- Beam Distance @ .25Lux - 1,959
- Horizontal Beam Angle - 14
- Part # 140313
- Weight - 14.71
- Optics - Spot/Flood Combo
- Watts - 299
- Amp Draw - 21
- Voltage Max - 36
- Raw Lumens - 35,680
- Lux @ 10M - 5,134
- Beam Distance @ 1Lux - 716
- Beam Distance @ .25Lux - 1,433
- Horizontal Beam Angle - 19
- Part # 142313
- Weight - 14.71
- Optics - Spot/Driving Combo
- Watts - 370
- Amp Draw - 30
- Voltage Max - 36
- Raw Lumens - 41,032
- Lux @ 10M - 7,127
- Beam Distance @ 1Lux - 844
- Beam Distance @ .25Lux - 1,688
- Horizontal Beam Angle - 28
E-Series ADAPT
- Part # 280413 - Spot/Flood
- Weight - 15.00
- Optics - Spot/Driving/Scene
- Watts - 231
- Amp Draw - NL
- Voltage Max - 36
- Raw Lumens - 29920
- Lux @ 10M - 7425
- Beam Distance @ 1Lux - 862
- Beam Distance @ .25Lux - 1,723
- Horizontal Beam Angle - 17
SR Series Pro Light Bar
- Part # 940314 - Spot/Flood
- Weight - 13.00
- Optics - Spot/Flood Combo
- Watts - 259
- Amp Draw - 18.5
- Voltage Max - 36
- Raw Lumens - 25,080
- Lux @ 10M - 3,772
- Beam Distance @ 1Lux - 614
- Beam Distance @ .25Lux - 1,228
- Horizontal Beam Angle - 18
- Part # 941314 - Spot/Drive
- Weight - 14.00
- Optics - Spot/Driving Combo
- Watts - 303
- Amp Draw - 21.64
- Voltage Max - 36
- Raw Lumens - 28,842
- Lux @ 10M - 4,653
- Beam Distance @ 1Lux - 682
- Beam Distance @ .25Lux - 1,364
- Horizontal Beam Angle - 18
