(Disclaimer: This light kit is pictured with the additional Rigid Extended D-Series Brackets to flip the lights right side up. Without adding these brackets to your kit, your lights will install upside down in the fog pocket. This is mainly just a cosmetic issue, where the lights will appear with the word "Rigid" upside down and along the bottom of the light instead of right side up and along the top. Please choose to add the Flip Brackets to your order if you would like to have them right side up. We have bundled them together and discounted them in the link below as a convenience for this purpose.)
Ford Raptor Fog kit including Brackets and triple harness for 2021-2022 Raptor in STAINLESS & BLACK POWDERCOAT
The NEW 2021-2022 SPV Parts POD light fog brackets are HERE! This is the first, and we think will stay the BEST for quality, fitment and adjustability! We hold our quality standards very high!
These INCLUDE the newest Raptor GEN 3 brackets.
Choose from the Radiance, or Radiance Scene versions:
Rigid just released their NEW and UPDATED Radiance+ Series RGBW Lights. These new lights being RGBW include the ability now to choose any backlight color (or change it on the fly). You can set them to Amber, like your Parking/Marker Lights. Or maybe you want a white backlight for the day? Purple? Blue? You can select other colors like Red also, just be careful as some states have laws against red or blue of any kind on the front of a vehicle when driving.
In addition, Rigid also upgraded the Horsepower of the Radiance light from 900 lumens to 2180.. and they modified the beam to a broad spot. So now, if you do mix your Radiance and Scene models. You will get different coverage angles for more visibility. The Scene model retains it's 2970 lumens but gains the RGBW color changes.
RGBW Radiance+ (#202053) Lumens – 2180 Per Pod (New Broad Spot Pattern / 19.9 Horizontal Beam Angle)
RGBW Radiance+ Scene (#682053) Lumens – 2970 Per Pod (Scene Pattern / 100 Horizontal Beam Angle
Any light kit in this group with the SAE Models listed are the NEWEST Rigid SAE Pro lights which produce a WHOPPING 3,452 lumens! That is almost unheard of in a true certified SAE Light!
While the SAE lights do NOT have an amber backlight, they have become very popular to put in the middle of either 2 Radiance or 2 Scene lights that do. SAE lights are 100% Street Legal/Traffic Certified and offer an additional light pattern. When SAE light is on, the amber of the other 2 Radiance or Scene lights shine on both sides like a Headlight with parking lights.
If you are not worried about a certified street legal light. You can simply choose all Radiance, All Scene or a mix of the two and they will ALL have the amber backlights.

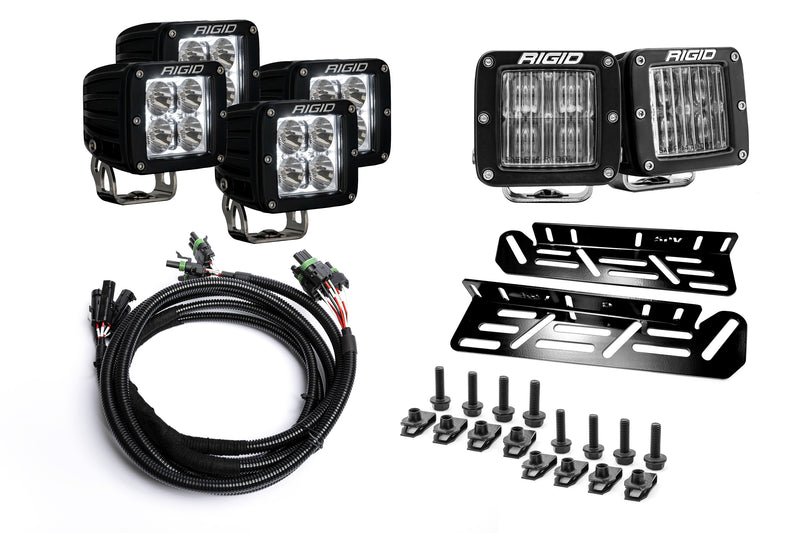

The kit includes:

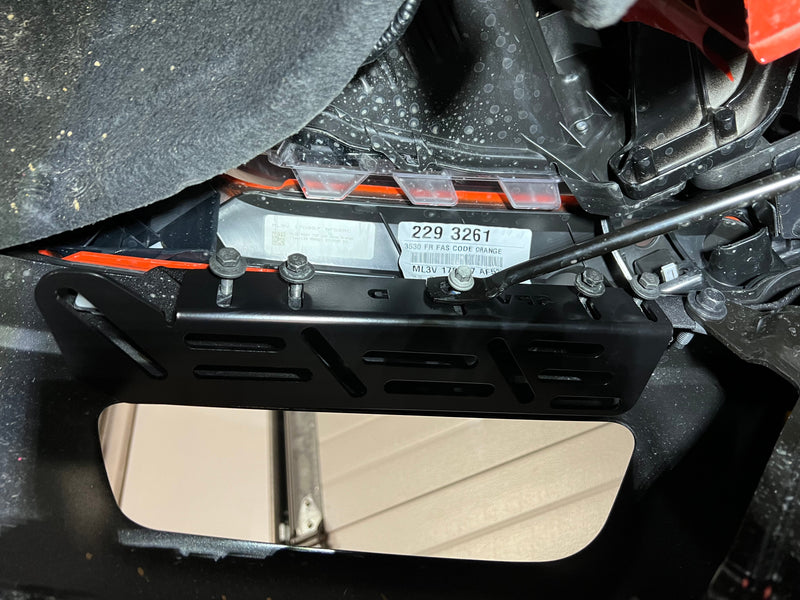

- 1 Pair of SPV Premium Fog mount Brackets with Bolts (NO DRILL)
- 3 Pair of Rigid POD Radiance AMBER Fogs
- Custom ASSEMBLED One Piece Harness
- If you DIDN'T get fogs from the factory, be sure to select NO so we include the special hardware you will need to mount your brackets.
NOTE: EACH KIT HAS ALL YOU REQUIRE... HOWEVER, THERE ARE ADDITIONAL ADD ONS YOU CAN ADD TO CUSTOMIZE YOUR LOOK, AND FUNCTION.
TO KEEP COST DOWN AND THE ABILITY FOR YOU TO ADD THE FEATURES YOU WANT THESE ARE ADD ONS. SOME OF THESE INCLUDE (AGAIN, THESE ARE A SEPARATE ADD ON)-
- FLIP BRACKETS (ROTATES LIGHTS)
- MARKER ADAPTER (POWERS BACKLIGHTS FROM RUNNING LIGHTS INSTEAD OF SWITCH)
- 2 OR 3 WAY SPLITTERS (SHARES BACKLIGHT CONNECTIONS OR COMBINES PAIRS TO ONE SWITCH)
- SPARE FUSES
- SWITCH WIRE EXTENSIONS (NUMBERED WIRES WITH CONNECTORS FOR ALL 6 SWITCH WIRES)
- AUX WIRE PREP PACKS (NUMBERED & EXTENDED WIRES WITH CONNECTORS FOR ALL SWITCH WIRES AND PASS THROUGHS)
- PIG TAILS (PRE PINNED WIRES FOR USE WITH INCLUDED CONNECTORS IN THE HARNESS SO YOU DON'T NEED TO CRIMP PINS)
PLEASE LOOK AT THE CUSTOM ADD ON SECTION JUST UNDER THE ADD TO CART FOR MORE DETAILS ON EACH ITEM AND TO ADD THE ONES YOU WANT. IT SCROLLS LEFT/RIGHT.
WHY NOT INCLUDE THEM? BECAUSE YOU MIGHT WANT A BACKLIGHT ON A SWITCH OR HAVE MULTIPLE KITS TO SHARE A MARKER ADAPTER AND NOT WANT TO PAY FOR MULTIPLES YOU WON'T USE. OR YOU MAY PREFER TO SAVE THE COST OF FLIP BRACKETS AND THE SILVER PRINT UPSIDE DOWN DOESNT BOTHER YOU. YOU CAN BLACK IT OUT WITH A PAINT PEN. ETC ASK US FOR HELP OR IF YOU HAVE QUESTIONS.
Note: There are several ways you can wire your lights in. We want to provide the best general option, but at the same time, not throw in all the other options and increase the price without allowing you that choice.
So each kit includes, a triple harness that goes to the switch wires with 3 individual connections. On the 800A all 6 switch wires are there. In the 801A, only 5 switch wires are in that location. You can reroute and move the 2 connections located in the bumper opening for the fog switch and Switch 1, back to that location with the other 5 wires with our optional Relocation harness which just plugs in. No splicing. So then you'll have access to 7 switch wire in one location. Since that isn't the same in every situation, we left it an option.
No Drilling Required

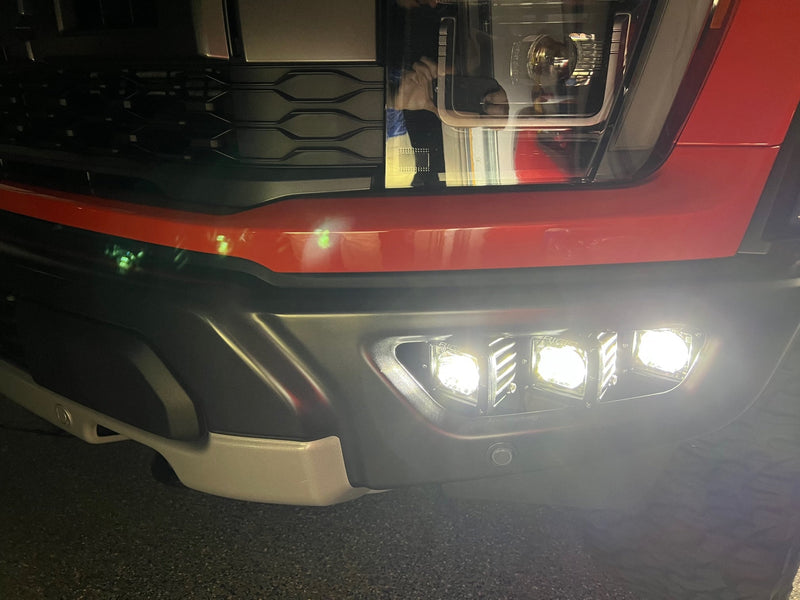

This version of the RADIANCE Series has an LED Amber surround for an effect that glows like the LED Markers on the Raptor.
This can be wired into the amber markers to be turned on when they are.
The other main WHITE LED Bulb can be illuminated by connecting it to your utility switches.
These can be run on 3 individual switches or tied into 1 switch.
Both the RIGID Light housings AND the HIGH END stainless steel SPV Parts Brackets have a HEAVY DUTY Black Powdercoat finish that Prohibits corrosion.
Powdercoat is NOT Paint. Powdercoat is a BAKED On Finish more like baking a Glaze onto a piece of pottery. It SEALS and looks GREAT! The Black Finish ties in and Matches your vehicles finish.
If you have a question on the differences between this Fog kit and our OTHER Rigid Fog Kits, or any other kit on the market you are trying to compare, Shoot us a message. We would be more than happy to provide detailed comparative information.
Install time, approx 2-4 hours.
(Note: Technically these are considered offroad lights. We are not responsible for your states laws, rules or regulations)
NOTE: Regarding changing the backlight colors. You may need to unplug each light and change the colors one at a time initially as trying to do multiples at a time may go out of sequence. Once you have them all set, you can plug them all back in together.
